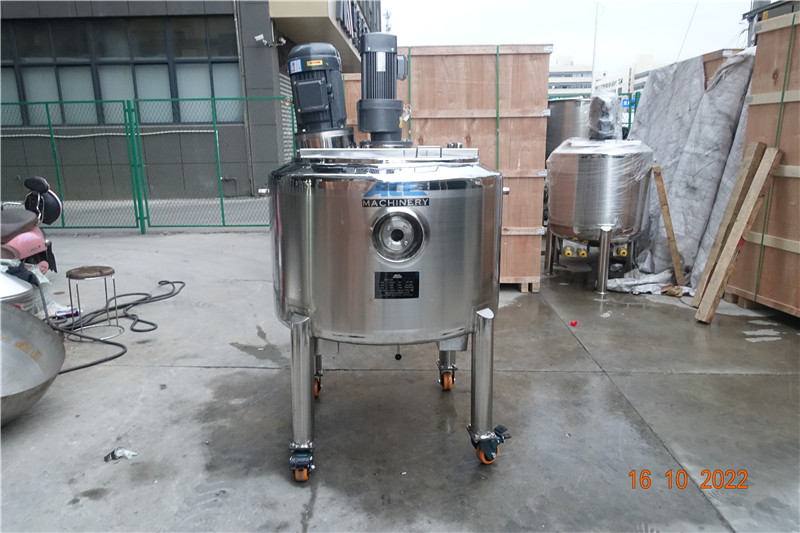

100-1000 gallon stainless steel mixing tank

Customized 100 to 1000 gallon stainless steel mixing tanks is an ideal size for many businesses This size tank is perfect for mixing large batches of product

Product description

Description

Mixing tanks from Ace Tanks are available in sizes ranging from 100 gallons to more than 1000 gallons, making them suitable for a diverse range of industries and beverages. Our mixing tanks are made of food-grade stainless steel SS304 and have a thickness of 3–4 millimeters. The interior has a sanitary finish, and the exterior side walls have a #4 dairy finish. All mixing tanks come standard with a headspace that is 25% larger than the working volume and a warranty that is good for two years. They have applications in the food and beverage, brewing, pharmaceutical, and chemical industries because of their ability to dissolve solids into liquids and mix liquids together.

Included in the Package:

Warranty for Two Years

Options for Insulation and Covering with a Jacket

legs that are adjustable and have large round feet.

Inlet, Common Inlet Port with Spray Ball, and Drain are the Standard Ports.

SS304 tank body with a minimum thickness of 3 millimeters, also available in SS316

Ports, tank capacity, and headroom were all expanded on a custom basis.

Options include a 15-degree Cone, a Sloped Bottom, and a Baffle.

Included are the Pitch Blade Impeller as well as the Drive Motor.

Technical Parameters
Volume (L)	Dimensions (D*H mm)	Total Height (mm)	Motor Power (kw)
300	800*610	1350	0.35
500	800*1000	2100	0.55
1000	1100*1220	2420	0.75
1500	1300*1220	2420	1.1
2000	1450*1220	2420	1.5
3000	1600*1500	2700	2.2
5000	1660*2300	3200	5.5
10000	2100*2900	4200	7.5
More	According to customer's requirement

Main Characteristics

1. High-temperature insulation materials, such as anti-aging polyurethane foam or EPE, are used in the container.

2. The interface employs the ISO quick chuck, a liner made of imported stainless steel SUS316L or SUS304 manufacturing, the inner surface mirror-polished to Ra0.4m, and the outer surface cast in matte, glossy, matt sandblasted, or cold colors.

3. Imported sanitary mechanical seals or magnetic stirring sealed stirring device, optional moving speed

4. The nozzle has a level gauge port (static pressure, capacitive, non-contact, ultrasonic, glass tube), a mouth breathing air, a thermometer (digital display or dial type), a CIP cleaning mouth, a light-proof (as endoscopic light integration), a SIP sterilization mouth, and an out of the liquid inlet and a health maintenance hole.
