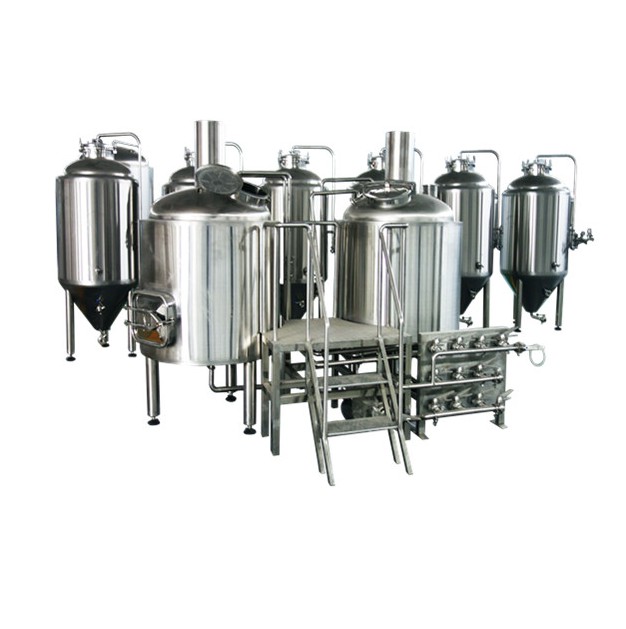

5 bbl Brewery Equipment - Perfect for Homebrewing!
5bbl brewery equipment is the perfect way to get started in the brewing business This system is small enough to be easily managed, but large enough to produce a quality product
Product description
Description
5 bbl brewery equipment is the perfect size for your home brewing needs! With this size, you'll be able to brew 5 bbl of beer at a time, which is the perfect amount for a small party or get-together. This site is also great for those who want to try their hand at brewing, but don't want to invest in a larger setup. 5 bbl brewery equipment is affordable, easy to use, and will give you the perfect beer every time. If you're looking for the perfect size brewing equipment for your home brewing needs, look no further than 5 bbl brewery equipment! This size is perfect.
5BBL Beer Equipment Basic Configuration
2 / 3 / 4 Vessels 20BBL Brewhouse
3 / 6pcs Fermenters
1pcs Glycol Water Tank With Chiller
1pcs CIP Cleaning Device
1 / 2pcs Control Panel
Other Parts Fitting
Name | Capacity | Qty | Details |
Grain Mill | The output is changeable | 1 set | Doulbe roller, adjustable mill degree, stainless steel,Votage:adjustable |
Mash System | 200-5000L according to your requirement | 1 set | Material:SUS304,316 or red copper Inner thickness:3mm Outer tank thickness:2mm Surface:Mirror polished Ra≤0.5 or 0.4 Volume: 20% extra headspace Heating method:Electric for small capacity and steam for large capacity Including valves, spray ball, glass manhole, washing pipeline,PT100 tempreture sensor, Siemens motors. Plasma cutting sieve plate:gap width ≤0.9mm Stainless Steel |
Hot Liquor Tank | 200-5000L according to your requirement | 1 set | Material:SUS304,316 or red copper Inner thickness:3mm Outer tank thickness:2mm Surface:Mirror polished Ra≤0.5 or 0.4 Volume: 20% extra headspace
|
Wort Pump | 1-10T/h | 1 set | Simens motor, voltage:adjustable;delivery lift:24m;inlet:φ38,outlet:φ32 |
Pipeline | SUS304 | 1 set | Material:SUS304 stainless steel mirror polished |
Working platform | SUS304 | 1 set | Accroding to your brewery layout SUS304 Stainless Steel |
Plate heat exchanger | 1-20m^2 | 1 set | Stainless steel SUS304 Double guide cooling process with four stages design pressure:1.25Mpa |
Fermentation Tank | 200-5000L according to your requirement | 1 set | Material:SUS304,316 or red copper Tank thickness:inner tank:3mm outer tank:2mm Insulation:polyurethane 80mm Preasure:0.2Mpa Top/side manhole(according to your requirement) Accessories:pipeline,spray ball,preasure relief valve,sample valve,hops port,PT100 sensor |
Bright(Brite)Beer Tank | 200-5000L according to your requirement | 1 set | Material:SUS304 Tank thickness:inner:3mm outer:2mm |
Glycol Ice Water Tank | 200-5000L according to your requirement | 1set | material:SUS304 Tank thickness:inner:3mm outer:2mm |
CIP Cleaning system | adjustable capacity | 1 set | sterilization tank alkali liquor tank |
5BBL Mashing System
A three-vessel brew house is a hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example, a medium-sized brewery with a focus on heavily hopped beers might choose to go with a combination Mash Lauter Tun, a dedicated Kettle, and a dedicated Whirlpool.
5BBL brewhouse can be in various combination:
Ace Craft offers steam-powered, electric, and direct fire brew houses in 2, 3, 4, and 5-vessel configurations.
Ace Craft brew houses integrate advanced design and manufacturing techniques to maximize energy efficiency and water conservation. All brew houses include piping, fittings, and a centralized automated control system to easily and accurately monitor and manage your current batch.
5BBL Fermentation System
Fermentation tanks are where the magic happens. It’s important to have a precisely built vessel to condition your beer as it ferments. Ace Craft offers fermentation tanks with ultra-precise welding and polishing, complete traceability, and material exactness to meet all international safety standards. From small, pub-size fermentors to towering outdoor tanks, we have the manufacturing capability and expertise to custom-build fermentation tanks of all sizes.
Beer equipment advantages:
1). High cost performance.
2). Good abrasion resistance materialcopper beer equipment.
3). We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket
is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
4). Polishing accuracy up to Ra0.4μ m.
5). Strict tank pressure test.
6). Energy conservation and pollution emissions.
If you want to know more about brewery equipment, you can contact us at any time.
