Milk cooling tank
Milk Cooling System
Milk Cooling System

Milk Cooling System

A milk cooling system is important for dairy farmers because it helps keep milk fresh and prevents it from spoilage Milk cooling systems can also help increase the shelf life of milk

Product description

Description

A milk cooling system is an integral part of a dairy farm. It cools milk to a safe temperature for storage and consumption. The method comprises a tank, cooling coils, and a refrigeration unit. The milk is pumped into the tank and then cooled by the waves. The refrigeration unit keeps the milk at a constant temperature. The milk cooling system is an integral part of the dairy industry.

A milk cooling system is an essential part of a dairy farm. It cools milk to a safe temperature for storage and consumption.

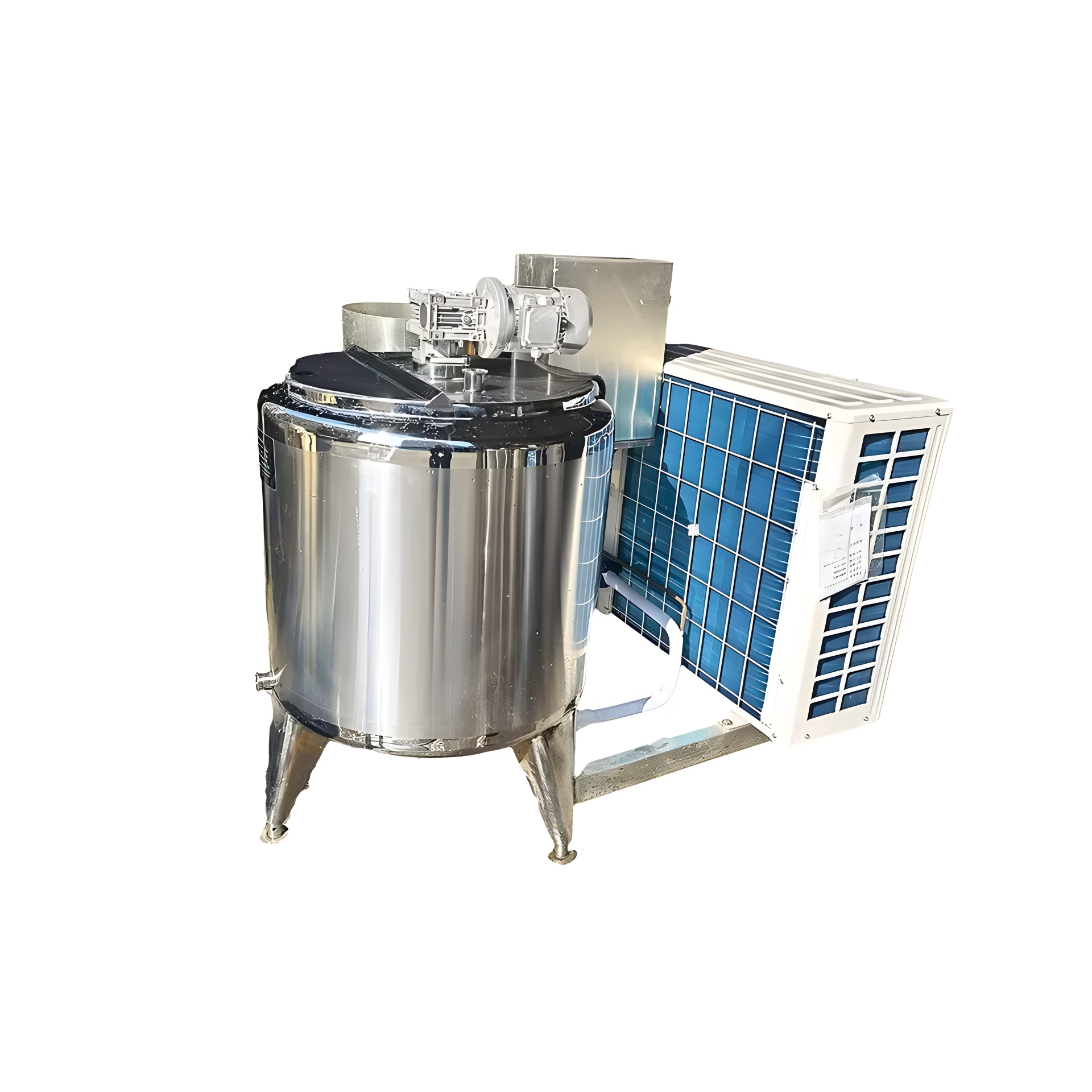

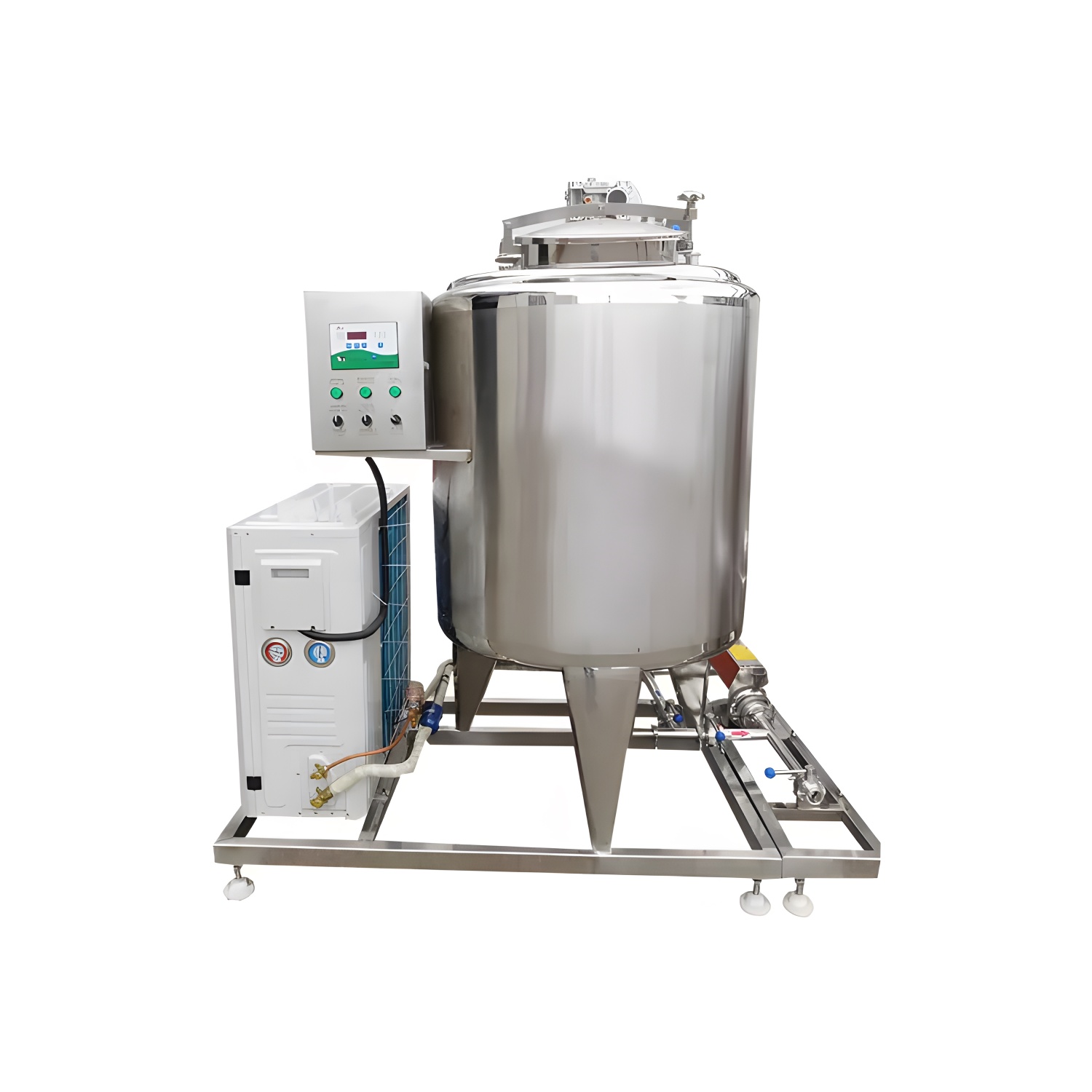

Milk Cooling System

The milk cooling tank is used to cool, store, and keep fresh milk fresh. It is also suitable for the cooling and storage of other beverages. It comprises four layers: Liner, Jacketed Layer, Insulation Layer, and Shroud Layer. It is operated automatically. The fresh milk squeezed out by the milker at 36 degrees centigrade can be cooled to 10 degrees when it comes to the tank. The milk then will be cooled to 4-6 degrees centigrade after it comes to the tank body, which improves the quality of milk and guarantees acidity and freshness. An insulating layer wrapping the jacketed layer keeps it at a constant temperature and prevents the milk from producing bacterium. The timed agitator makes the fresh milk keep an A grade.


We can design, manufacture, and install milk production lines and plants to produce all kinds of dairy products, such as pure and flavored milk.

Tank Voltage

150L

200L

500L

1000L

Refrigeration tank structure

Vertical

Vertical

Vertical

Vertical

Unit power

3P

3P/set

3P/set

3P/set

Unit power

2kw

2.6kw

2.6kw

2.6kw

Cooling capacity

5000 kal/h

6000 kal/h

6000 kal/h

6000 kal/h

Refrigerant r

R22

R22

R22

R22

Insulation performance (temperature)

≤1℃/3h

≤1℃/3h

≤1℃/3h

≤1℃/3h

Blender

0.37kw

0.75KW

0.75KW

0.75KW

Stirring speed

36r/min

36(r/min)

36(r/min)

36(r/min)

Material

304 stainless steel

304 stainless steel

304 stainless steel

304 stainless steel

Voltage

220V/50hz

380V/50HZ

380V/50HZ

380V/50HZ

Inner bladder

2mm

2mm

2mm

2mm

Cooling plate

0.9mm

0.9mm

0.9mm

0.9mm

Outer skin

1.2mm

1.2mm

1.2mm

1.2mm

Insulation

5cm

5cm

5cm

5cm

Insulation materials

Polyurethane foaming liquid

Polyurethane foaming liquid

Polyurethane foaming liquid

Polyurethane foaming liquid

Features of Milk Cooling System

 Manufactured with advanced international technology

 More than ten years of experience in the manufacture of the beverage processing machine.

 High-quality material.

 The world's best compressible

  Refrigerant: R404A (recommended) or R22.

 Temperature controllable.

 Electrical control box of the cooling system: water resistant, electric shock proof, and wrong manipulation proof.

 It is equipped with a cleaning ball and mixing system.
