Vertical Liquid Storage Tank
Vertical Liquid Storage Tank

Vertical Liquid Storage Tank

High Pressure Stainless Steel Chemical Oil Water Vertical Liquid Storage Tank

Product description

Description

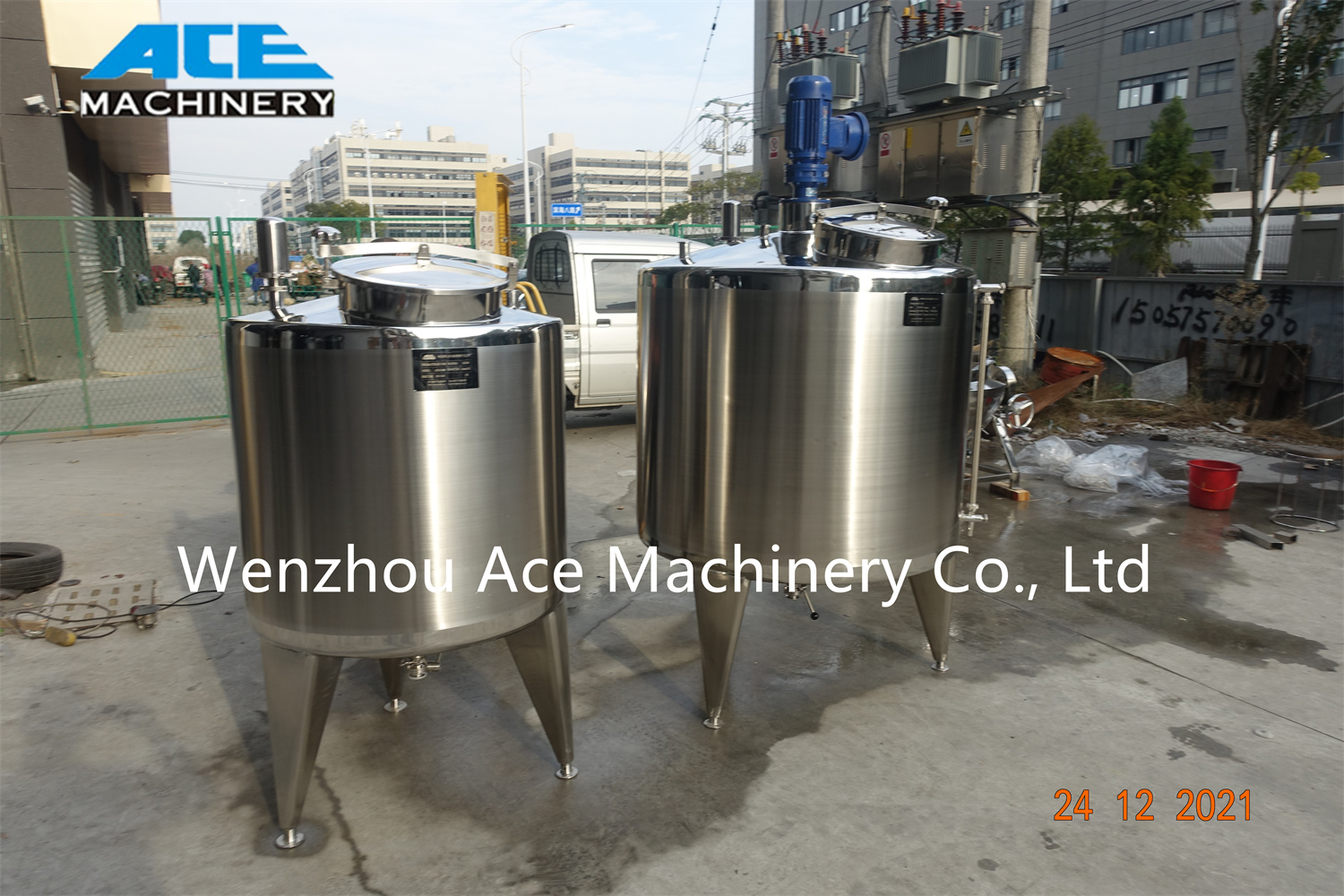

Vertical Liquid Storage Tank

1) Stainless steel tank (storage tank) is usually used for storage water, liquid, milk, temporary storage, material storage, etc. Suitable for such fields as dairy, juice, beverage, medicine chemical or bio-engineering Project, etc.
2) Single-layer tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards .
3. We can supply single-layer, dual-layer and three-layer stainless steel tanks with or without agitation to blend product, with a wide capacity range from 1000L to 10,000L and even larger.

Vertical Liquid Storage Tank


Material:

SS304 or SS316L

Design Pressure:

-1 -10 Bar (g) or ATM

Work Temperature:

0-200 °C

Volumes:

50~50000L

Construction :

Vertical type or Horizontal type

Jacket type :

Dimple jacket, full jacket, or coil jacket

Structure :

Single layer vessel, vessel with jacket, vessel with jacket and insulation

Heating or cooling function:

According to the heating or cooling requirement ,the tank will have jacket for requried function

Opitional Motor:

ABB, Siemens, SEW or Chinese brand

Surface Finish:

Mirror Polish or Matt polish or Acid wash&pickling or 2B

Standard components :

Manhole,sight glass , cleaning ball

Optional components :

Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100

Applicable range

1.Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.

2.Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.


Structure characteristics

1.Made of single-layer stainless steel structure.

2.Materials are all sanitary stainless steel.

3.Humanized structure design and easy to operate.

4.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.


Configuration of Vertical Liquid Storage Tank

1.Quick open manhole.

2.Various types of CIP cleaners.

3.Fly and insect resistant sanitary breathing cover.

4.Adjustable triangular bracket.

5. Dismountable materials input pipe assembly.

6.Thermometer (According to customer requirements).

7.Ladder (According to customer requirements).

8.Liquid level meter and level controller (According to customer requirements ).

9.Eddy-proof board.
